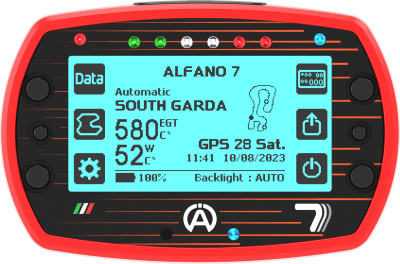

Alfano 7 T2 Dash System
The Alfano 7 T2 system is the latest from the Alfano Factory based Belgium.
The Alfano 7 T2 with (2 Temperature inputs) directly in to the Dash. Both units can have more temperatures and sensors added via the Box 12 expansion box or Box 4 Move. The factory has responded to the feedback from its customers
The Alfano 7 has a latest-generation GPS module with 25 Hz, in
which it works with the satellites from Navstar US, Glonass RU, BeiDou CHN and
Galileo EU. Over 5525 Tracks / Circuits are available via GPS. The speed can be measured via GPS or a speed sensor.
To allow the user to customise the appearance of the various displays, the
Alfano has a high-resolution, freely configurable graphic display. The numerous LEDs, whose colours, values and brightness can be set
individually.
With the 2T, 2 temperature sensors, e.g. for water and exhaust gas, can be
connected to the device using the A2180 hub.
The integrated lithium-ion 3000 mA battery guarantees a power supply for more
than 40 hours and can be recharged using a charging cable (no need to remove or
change the battery). The data is downloaded via a Bluetooth or wireless connection. The tyre temperature and pressure sensors can also be connected internally or
externally via wireless.
- Increased Download Speed by 17.6%
- Memory Optimisation improved by 20%
- Faster Downloads via Dongle (A4550) to PC
- Faster Downloads to Apps
- Greater GPS Range
- New GPS Frequencies 25hz
- New Accusation Frequencies - Lambda, EGT, RPM and Analog Input 5v via Box12
- New Wireless Communications System
- Connection to Tyre Temp and Pressure Sensors
- Improved Graphics
- Protective Dash Cover
- Floating Screen Effect Solved by Firmware
- T1 Upgrade to T2 by purchase of lifetime licence online
Specifications
- Lap time to the hundredth of a second.
- GPS : Galilleo (EU), Navstar (USA), Glonass (RU) +/- 35 satellites.
- 2527 GPS tracks pre-programmed.
- Bluetooth.
- Rechargeable Lithium-Ion 3000 mA integrated.
- 1 port (green) for magnet or infrared sensor, speed optional with stroke
A2194
- 1 port (red) for max. 2 temperature
- 1 port (black) for Module Box 12, data download via USB or battery
charging.
- 1 port for speed cable
- 4 operating hours Counter 1 for Distance
- Sampling rate 10Hz, speed and exhaust gas temperature up to 50 Hz.
- Backlight in 5 colours.
- 6 LEDs for speed, temperature and time in 5 colours
- 2 LEDs for temperature alarm in 5 colours
- 1 Led battery charging and download.
- 6 languages
- Display: 160x94 pixels 90x45mm
- Dimensions: 136 x 88 x 33mm
- Weight: 435 Gr.
- IP56
Add on Options
- Alfano 7 Kits for selected classes in Karting - See Products below.
- Water Temp or Oil Temp Sensors with Patch Lead for M10 - M5 & 1/8 (Rotax / X30 / KZ / Superkart / Mini Bikes)
- Underplug / CHT Sensors with Patch Lead for 14mm, 12mm and 10mm spark plugs (IAME, Honda, Bambino, Powerboats)
- EGT (Exhaust Gas Temperature) Sensors
- Wheel Speed Sensor
- Box 4 Move (Steering / Brake / Throttle)
- Box 12 (Steering / Brake / Throttle, Extra Temperatures, Lambda, 5v Analog Port, and more sensors inputs)
- Heated Lambda Sensor
- Tyre Pressure and Temperature Sensors
