The Alfano 7 system is available in T1 (Single Temperature Input) upgradable to a T2 via the web. The factory has responded to the feedback from its customers.




The Alfano 7 has a latest-generation GPS module with 25 Hz, in which it works with the satellites from Navstar US, Glonass RU, BeiDou CHN and Galileo EU. Over 5525 Tracks / Circuits are available via GPS. The speed can be measured via GPS or a speed sensor.


To allow the user to customise the appearance of the various displays, the Alfano has a high-resolution, freely configurable graphic display. The numerous LEDs, whose colours, values and brightness can be set individually.

Only 1 temperature can be connected to the 1T, e.g. water or exhaust gas, With the 2T, 2 temperature sensors, e.g. for water and exhaust gas, can be connected to the device using the A2180 hub. The integrated lithium-ion 3000 mA battery guarantees a power supply for more than 40 hours and can be recharged using a charging cable (no need to remove or change the battery).

The data is downloaded via a Bluetooth or wireless connection. The tyre temperature and pressure sensors can also be connected internally or externally via wireless.

Alfano T7 1T and 2T have the same hardware which makes it possible to upgrade a 1T to 2T. You can purchase a lifetime licence on the website.


So What's NEW

  • Increased Download Speed by 17.6%
  • Memory Optimisation improved by 20%
  • Faster Downloads via Dongle (A4550) to PC
  • Faster Downloads to Apps
  • Greater GPS Range
  • New GPS Frequencies 25hz
  • New Accusation Frequencies - Lambda, EGT, RPM and Analog Input 5v via Box12
  • New Wireless Communications System
  • Connection to Tyre Temp and Pressure Sensors
  • Improved Graphics
  • Protective Dash Cover
  • Floating Screen Effect Solved by Firmware
  • T1 Upgrade to T2 by purchase of lifetime licence online

Specifications

  • Lap time to the hundredth of a second.
  • GPS : Galilleo (EU), Navstar (USA), Glonass (RU) +/- 35 satellites.
  • 2527 GPS tracks pre-programmed.
  • Bluetooth.
  • Rechargeable Lithium-Ion 3000 mA integrated.

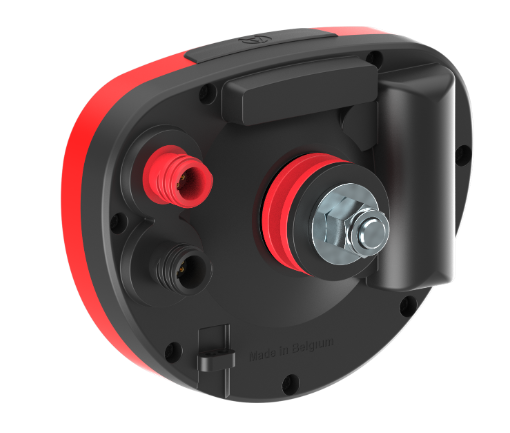

  • 1 port (green) for magnet or infrared sensor, speed optional with stroke A2194
  • 1 port (red) for max. 2 temperature
  • 1 port (black) for Module Box 12, data download via USB or battery charging.
  • 1 port for speed cable
  • 4 operating hours Counter 1 for Distance
  • Sampling rate 10Hz, speed and exhaust gas temperature up to 50 Hz.
  • Backlight in 5 colours.
  • 6 LEDs for speed, temperature and time in 5 colours
  • 2 LEDs for temperature alarm in 5 colours
  • 1 Led battery charging and download.
  • 6 languages
  • Display: 160x94 pixels 90x45mm
  • Dimensions: 136 x 88 x 33mm
  • Weight: 435 Gr.
  • IP56


Add on Options

  • Alfano 7 Kits for selected classes in Karting - See Products below.
  • Water Temp or Oil Temp Sensors with Patch Lead for M10 - M5 & 1/8  (Rotax / X30 / KZ / Superkart / Mini Bikes)
  • Underplug / CHT Sensors with Patch Lead for 14mm, 12mm and 10mm spark plugs (IAME, Honda, Bambino, Powerboats)
  • EGT (Exhaust Gas Temperature) Sensors
  • Wheel Speed Sensor
  • Box 4 Move (Steering / Brake / Throttle)
  • Box 12 (Steering / Brake / Throttle, Extra Temperatures, Lambda, 5v Analog Port, and more sensors inputs)
  • Heated Lambda Sensor
  • Tyre Pressure and Temperature Sensors

Alfano 7 T1 Basic Dash System

Alfano 7 T1 Basic Dash System

NEW - Alfano 7 T1 Basic Dash System  GPS included with connection to the Galileo GPS Sa..

£375.00

Alfano 7 T1 Dash Inc 14mm CHT for Comer Bambino

Alfano 7 T1 Dash Inc 14mm CHT for Comer Bambino

Alfano 7 - T1 Dash for Comer Bambino  GPS included with connection to the Galileo GPS S..

£450.00

Alfano 7 T1 Dash Inc 14mm CHT for IAME / Honda

Alfano 7 T1 Dash Inc 14mm CHT for IAME / Honda

NEW - Alfano 7 - T1 Dash for IAME / Honda Air Cooled  GPS included with connection to the..

£450.00

ALFANO 7 T1 Dash Inc Water Temp Sensor Rotax Max / X30

ALFANO 7 T1 Dash Inc Water Temp Sensor Rotax Max / X30

NEW Alfano 7 - T1 Dash for Rotax / X30 / KZ GPS included with connection to the Galileo G..

£450.00

Showing 1 to 4 of 4 (1 Pages)
